A drawable element backed by NSBezierPath with color, text, and MIDI attributes. More...

#include <Pad.h>

Inheritance diagram for Pad:

[legend]

Collaboration diagram for Pad:

[legend]

Instance Methods
(NSString *)	- text
(void)	- setText:
(Boolean)	- hasAction
(id)	- initWithRect:
(id)	- initWithPad:
(id)	- initWithBezierPath:
(void)	- formatSvgToFile:withIndentLevel:
(void)	- translateX:Y:
(BOOL)	- containsPoint:
(void)	- transformUsingAffineTransform:
(void)	- draw
(id)	- copyWithZone: `[implementation]`
(void)	- setFillColor: `[implementation]`
(void)	- setLineColor: `[implementation]`
(void)	- setTransparency: `[implementation]`
(id)	- init `[implementation]`
(void)	- dealloc `[implementation]`
(void)	- encodeWithCoder: `[implementation]`
(id)	- initWithCoder: `[implementation]`
(void)	- drawNubs: `[implementation]`

Protected Attributes
NSBezierPath *	path
	! Primary geometry of the pad.
NSBezierPath *	tracePath
	! Optional secondary path (e.g., trace/preview).
NSMutableArray *	elementBag
	! Optional container for child elements.
NSString *	text
	! Label drawn at the pad's center.
NSColor *	fillColor
	! Fill color.
NSColor *	lineColor
	! Stroke color.
int	layer
	! Layer index this pad belongs to (0 means all).
int	targetLayer
	! Target layer used when the pad acts as an action.
int	port
	! Reserved for MIDI port (if used).
int	channel
	! MIDI channel (0–15).
int	note
	! MIDI note number (0–127).
int	velocity
	! Default MIDI velocity (0–127).
int	actionID
	! Optional UI action identifier (PadActionID).
CGFloat	lineWidth
	! Stroke width used when drawing the path.
BOOL	hilight
	! Temporary highlight state for playback feedback.
BOOL	selected

Properties
CGFloat	transparency
	! Convenience access to fill alpha component.
NSColor *	altFillColor
	! Alternate fill color for highlight.

Detailed Description

A drawable element backed by NSBezierPath with color, text, and MIDI attributes.

Concrete implementation of Pad behaviors.

Pads are the primary interactive shapes in the canvas. They support selection, drawing, hit-testing, affine transforms, and persistence. Pads can be exported to SVG path data and used to trigger MIDI notes when interacted with.

Definition at line 24 of file Pad.h.

Member Typedef Documentation

◆ PadActionID

- (typedef NSInteger) PadActionID

protected

Definition at line 80 of file Pad.h.

Member Enumeration Documentation

◆ anonymous enum

- (anonymous) enum

protected

Enumerator
PadAction_NONE
PadActionResetMode
PadActionRestMode
PadActionDrawFreehandPadMode
PadActionDrawPolygonPadMode
PadActionMovePadMode
PadActionToggleGrid
PadActionSelectAll
PadActionDeselectAll
PadActionMakeTransparent
PadActionMakeOpaque
PadActionDuplicate
PadActionPlayMode
PadActionNudgeRight
PadActionNudgeLeft
PadActionNudgeUp
PadActionNudgeDown
PadActionRotateRight
PadActionRotateLeft
PadActionFlipVertical
PadActionScale2xHorizontal
PadActionScale2xVertical
PadActionScale3xHorizontal
PadActionScale3xVertical
PadActionScale1_2xHorizontal
PadActionScale1_2xVertical
PadActionScale1_3xHorizontal
PadActionScale1_3xVertical

Definition at line 49 of file Pad.h.

Method Documentation

◆ containsPoint:

- (BOOL) containsPoint: (NSPoint) p

Tests whether a point lies within the pad's filled area.

Parameters

p	A point in the same coordinate space as the path.

Returns: YES if the point is inside; otherwise NO.

Hit-tests a point against the pad's filled area.

Definition at line 394 of file Pad.m.

◆ copyWithZone:

- (id) copyWithZone: (NSZone *) zone

implementation

Creates a deep copy of the pad, duplicating geometry, colors, and attributes.

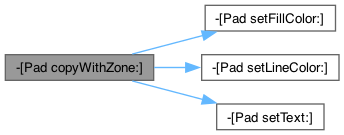

Parameters

zone	Allocation zone (unused).

Returns: A newly allocated Pad copy.

Definition at line 39 of file Pad.m.

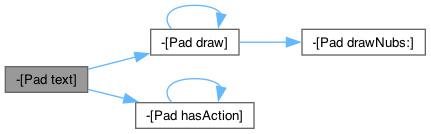

Here is the call graph for this function:

◆ dealloc

- (void) dealloc

implementation

Releases owned objects.

Reimplemented from Element.

Definition at line 206 of file Pad.m.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ draw

- (void) draw

Draws the pad's fill, stroke, optional text, and selection handles.

Renders the pad: fill, stroke, centered text label, and selection handles.

fudge...

Definition at line 485 of file Pad.m.

Here is the call graph for this function:

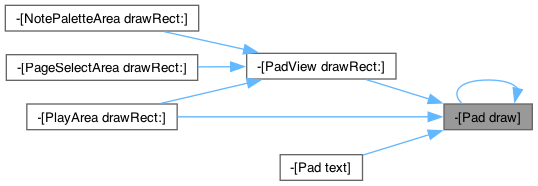

Here is the caller graph for this function:

◆ drawNubs:

- (void) drawNubs: (NSBezierPath *) bez

implementation

Draws small square handles (nubs) at key points of a path.

Definition at line 416 of file Pad.m.

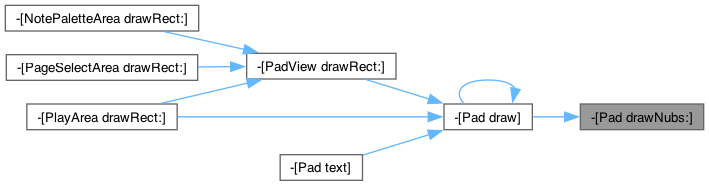

Here is the caller graph for this function:

◆ encodeWithCoder:

- (void) encodeWithCoder: (NSCoder *) aCoder

implementation

Encodes the pad for archiving.

Reimplemented from Element.

Definition at line 217 of file Pad.m.

◆ formatSvgToFile:withIndentLevel:

- (void) formatSvgToFile:		(FILE *)	outfile
withIndentLevel:		(int)	level

Serializes the pad as an SVG <path> element.

Parameters

outfile	Destination C FILE*.
level	Indentation level for pretty-printing.

Writes an SVG <path> with style, d attribute, and id metadata. Converts NSBezierPath elements to SVG commands (M, L, C, Z).

Definition at line 264 of file Pad.m.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hasAction

- (Boolean) hasAction

Indicates whether this pad has an assigned UI action.

Returns: YES if actionID != PadAction_NONE; otherwise NO.

Indicates whether this pad has an assigned action.

Definition at line 140 of file Pad.m.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ init

- (id) init

implementation

Designated initializer: sets defaults, creates a path, and assigns colors.

Reimplemented from Element.

Definition at line 147 of file Pad.m.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initWithBezierPath:

- (id) initWithBezierPath: (NSBezierPath *) bp

Initializes a pad with an existing Bezier path.

Parameters

bp	Bezier path to adopt (retained).

Initializes with an existing Bezier path instance.

Definition at line 187 of file Pad.m.

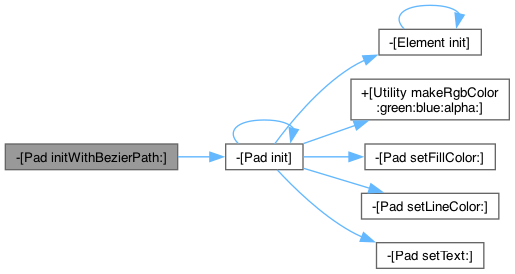

Here is the call graph for this function:

◆ initWithCoder:

- (id) initWithCoder: (NSCoder *) aDecoder

implementation

Decodes the pad from an archive.

Reimplemented from Element.

Definition at line 234 of file Pad.m.

Here is the call graph for this function:

◆ initWithPad:

- (id) initWithPad: (Pad *) pad

Initializes a pad by copying properties from another pad.

Parameters

pad	Source pad.

Placeholder initializer to copy from another pad (currently unused).

Definition at line 196 of file Pad.m.

Here is the call graph for this function:

◆ initWithRect:

- (id) initWithRect: (NSRect) rect

Initializes a rectangular pad path.

Parameters

rect	Rectangle to outline.

Initializes a rectangular path and closes it.

Definition at line 166 of file Pad.m.

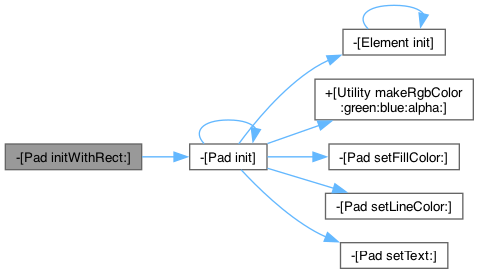

Here is the call graph for this function:

◆ setFillColor:

- (void) setFillColor: (NSColor *) x

implementation

Sets and retains the fill color.

Definition at line 67 of file Pad.m.

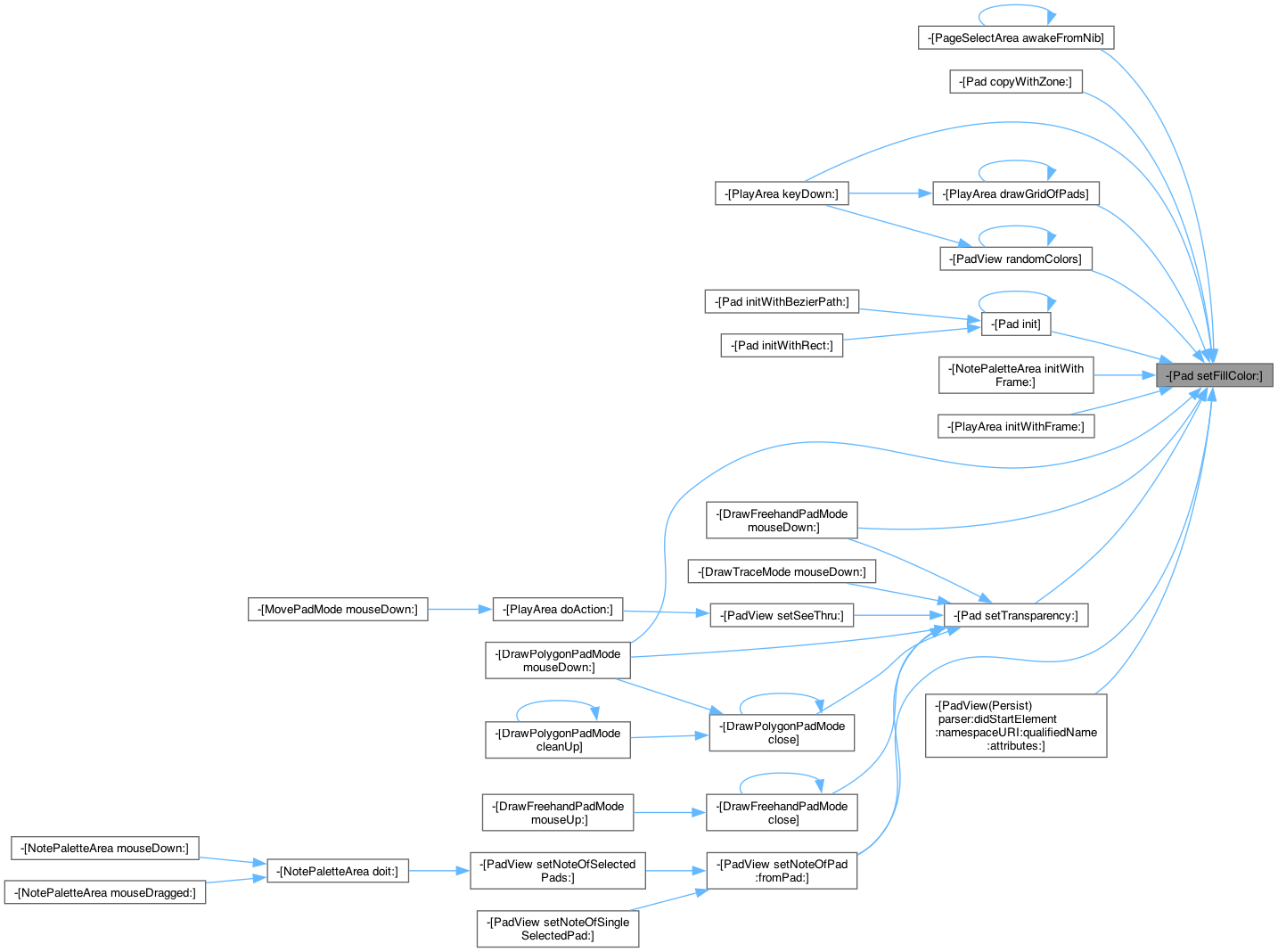

Here is the caller graph for this function:

◆ setLineColor:

- (void) setLineColor: (NSColor *) x

implementation

Sets the stroke color (disabled retain to avoid crash noted in comments).

Definition at line 107 of file Pad.m.

Here is the caller graph for this function:

◆ setText:

- (void) setText: (NSString *) t

Sets the pad's text label.

Parameters

t	New text value (retained).

Sets and retains the pad's text label.

Definition at line 132 of file Pad.m.

Here is the caller graph for this function:

◆ setTransparency:

- (void) setTransparency: (CGFloat) x

implementation

Sets the alpha component of the fill color while preserving RGB.

Definition at line 117 of file Pad.m.

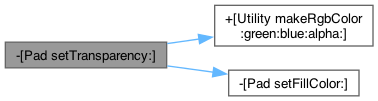

Here is the call graph for this function:

Here is the caller graph for this function:

◆ text

- (NSString *) text

Returns the pad's text label.

Here is the call graph for this function:

◆ transformUsingAffineTransform:

- (void) transformUsingAffineTransform: (NSAffineTransform *) transform

Applies an affine transform to the pad's path (and tracePath if present).

Parameters

transform Affine transform to apply.

Applies an affine transform to path and tracePath.

Definition at line 405 of file Pad.m.

Here is the caller graph for this function:

◆ translateX:Y:

- (void) translateX:		(CGFloat)	deltaX
Y:		(CGFloat)	deltaY

Translates the pad geometry by the specified deltas.

Parameters

deltaX	Translation along X.
deltaY	Translation along Y.

Translates the pad's geometry by deltaX and deltaY.

Definition at line 386 of file Pad.m.

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ actionID

- (int) actionID

readwriteprotected

! Optional UI action identifier (PadActionID).

Definition at line 38 of file Pad.h.

◆ channel

- (int) channel

readwriteprotected

! MIDI channel (0–15).

Definition at line 35 of file Pad.h.

◆ elementBag

- (NSMutableArray *) elementBag

readwriteretainprotected

! Optional container for child elements.

Definition at line 28 of file Pad.h.

◆ fillColor

- (NSColor *) fillColor

readwriteretainprotected

! Fill color.

Returns the current fill color.

Definition at line 63 of file Pad.m.

◆ hilight

- (BOOL) hilight

readwriteprotected

! Temporary highlight state for playback feedback.

Definition at line 41 of file Pad.h.

◆ layer

- (int) layer

readwriteprotected

! Layer index this pad belongs to (0 means all).

Definition at line 32 of file Pad.h.

◆ lineColor

- (NSColor *) lineColor

readwriteretainprotected

! Stroke color.

For the colors... assign ng (crash) retain ok copy ok (but leaks, I think)

Returns the current stroke color.

Definition at line 102 of file Pad.m.

◆ lineWidth

- (CGFloat) lineWidth

readwriteprotected

! Stroke width used when drawing the path.

Definition at line 39 of file Pad.h.

◆ note

- (int) note

readwriteprotected

! MIDI note number (0–127).

Definition at line 36 of file Pad.h.

◆ path

- (NSBezierPath *) path

readwriteretainprotected

! Primary geometry of the pad.

Definition at line 26 of file Pad.h.

◆ port

- (int) port

readwriteprotected

! Reserved for MIDI port (if used).

Definition at line 34 of file Pad.h.

◆ selected

- (BOOL) selected

readwriteprotected

! Selection state in the editor.

Definition at line 42 of file Pad.h.

◆ targetLayer

- (int) targetLayer

readwriteprotected

! Target layer used when the pad acts as an action.

Definition at line 33 of file Pad.h.

◆ text

- (NSString *) text

readwriteretainprotected

! Label drawn at the pad's center.

Returns the pad's text label.

Definition at line 128 of file Pad.m.

◆ tracePath

- (NSBezierPath *) tracePath

readwriteretainprotected

! Optional secondary path (e.g., trace/preview).

Definition at line 27 of file Pad.h.

◆ velocity

- (int) velocity

readwriteprotected

! Default MIDI velocity (0–127).

Definition at line 37 of file Pad.h.

Property Documentation

◆ altFillColor

- (NSColor *) altFillColor

readatomicassign

! Alternate fill color for highlight.

Computes an alternate fill color (lighter or darker) used for highlighting.

Returns: A derived NSColor based on the primary fillColor.

Definition at line 78 of file Pad.m.

◆ transparency

- (CGFloat) transparency

readwriteatomic

! Convenience access to fill alpha component.

Gets the alpha component of the fill color.

Definition at line 113 of file Pad.m.

The documentation for this class was generated from the following files:

Pad.h
Pad.m

Protected Types
enum	{ PadAction_NONE = 0 , PadActionResetMode = 1 , PadActionRestMode , PadActionDrawFreehandPadMode , PadActionDrawPolygonPadMode , PadActionMovePadMode , PadActionToggleGrid , PadActionSelectAll , PadActionDeselectAll , PadActionMakeTransparent , PadActionMakeOpaque , PadActionDuplicate , PadActionPlayMode , PadActionNudgeRight , PadActionNudgeLeft , PadActionNudgeUp , PadActionNudgeDown , PadActionRotateRight , PadActionRotateLeft , PadActionFlipVertical , PadActionScale2xHorizontal , PadActionScale2xVertical , PadActionScale3xHorizontal , PadActionScale3xVertical , PadActionScale1_2xHorizontal , PadActionScale1_2xVertical , PadActionScale1_3xHorizontal , PadActionScale1_3xVertical }
typedef NSInteger	PadActionID

Instance Methods

Protected Types

Protected Attributes

Properties

Detailed Description

Member Typedef Documentation

◆ PadActionID

Member Enumeration Documentation

◆ anonymous enum

Method Documentation

◆ containsPoint:

◆ copyWithZone:

◆ dealloc

◆ draw

◆ drawNubs:

◆ encodeWithCoder:

◆ formatSvgToFile:withIndentLevel:

◆ hasAction

◆ init

◆ initWithBezierPath:

◆ initWithCoder:

◆ initWithPad:

◆ initWithRect:

◆ setFillColor:

◆ setLineColor:

◆ setText:

◆ setTransparency:

◆ text

◆ transformUsingAffineTransform:

◆ translateX:Y:

Member Data Documentation

◆ actionID

◆ channel

◆ elementBag

◆ fillColor

◆ hilight

◆ layer

◆ lineColor

◆ lineWidth

◆ note

◆ path

◆ port

◆ selected

◆ targetLayer

◆ text

◆ tracePath

◆ velocity

Property Documentation

◆ altFillColor

◆ transparency
