#include "gpc.h"
#include <stdlib.h>
#include <float.h>
#include <math.h>

Include dependency graph for gpc.c:

Classes
struct	v_shape
struct	p_shape
struct	edge_shape
struct	lmt_shape
struct	sbt_t_shape
struct	it_shape
struct	st_shape
struct	bbox_shape

Macros
#define	FALSE 0
#define	TRUE 1
#define	LEFT 0
#define	RIGHT 1
#define	ABOVE 0
#define	BELOW 1
#define	CLIP 0
#define	SUBJ 1
#define	INVERT_TRISTRIPS FALSE
#define	EQ(a, b)
#define	PREV_INDEX(i, n)
#define	NEXT_INDEX(i, n)
#define	OPTIMAL(v, i, n)
#define	FWD_MIN(v, i, n)
#define	NOT_FMAX(v, i, n)
#define	REV_MIN(v, i, n)
#define	NOT_RMAX(v, i, n)
#define	VERTEX(e, p, s, x, y)
#define	P_EDGE(d, e, p, i, j)
#define	N_EDGE(d, e, p, i, j)
#define	MALLOC(p, b, s, t)
#define	FREE(p)

Typedefs
typedef struct v_shape	vertex_node
typedef struct p_shape	polygon_node
typedef struct edge_shape	edge_node
typedef struct lmt_shape	lmt_node
typedef struct sbt_t_shape	sb_tree
typedef struct it_shape	it_node
typedef struct st_shape	st_node
typedef struct bbox_shape	bbox

Enumerations
enum	vertex_type { NUL , EMX , ELI , TED , ERI , RED , IMM , IMN , EMN , EMM , LED , ILI , BED , IRI , IMX , FUL }
enum	h_state { NH , BH , TH }
enum	bundle_state { UNBUNDLED , BUNDLE_HEAD , BUNDLE_TAIL }

Functions
void	gpc_free_polygon (gpc_polygon *p)
void	gpc_read_polygon (FILE fp, int read_hole_flags, gpc_polygon p)
void	gpc_write_polygon (FILE fp, int write_hole_flags, gpc_polygon p)
void	gpc_add_contour (gpc_polygon p, gpc_vertex_list new_contour, int hole)
void	gpc_polygon_clip (gpc_op op, gpc_polygon subj, gpc_polygon clip, gpc_polygon *result)
void	gpc_free_tristrip (gpc_tristrip *t)
void	gpc_polygon_to_tristrip (gpc_polygon s, gpc_tristrip t)
void	gpc_tristrip_clip (gpc_op op, gpc_polygon subj, gpc_polygon clip, gpc_tristrip *result)

Variables
const h_state	next_h_state [3][6]

Macro Definition Documentation

◆ ABOVE

#define ABOVE 0

Definition at line 60 of file gpc.c.

◆ BELOW

#define BELOW 1

Definition at line 61 of file gpc.c.

◆ CLIP

#define CLIP 0

Definition at line 63 of file gpc.c.

◆ EQ

#define EQ	(		a,
			b )

Value:

(fabs((a) - (b)) <= GPC_EPSILON)

GPC_EPSILON

#define GPC_EPSILON

Definition gpc.h:47

Definition at line 75 of file gpc.c.

◆ FALSE

#define FALSE 0

Definition at line 53 of file gpc.c.

◆ FREE

#define FREE ( p )

Value:

{if (p) {free(p); (p)= NULL;}}

Definition at line 109 of file gpc.c.

◆ FWD_MIN

#define FWD_MIN	(	v,
		i,
		n )

Value:

((v[PREV_INDEX(i, n)].vertex.y >= v[i].vertex.y) \

&& (v[NEXT_INDEX(i, n)].vertex.y > v[i].vertex.y))

NEXT_INDEX

#define NEXT_INDEX(i, n)

Definition gpc.c:78

PREV_INDEX

#define PREV_INDEX(i, n)

Definition gpc.c:77

Definition at line 83 of file gpc.c.

◆ INVERT_TRISTRIPS

#define INVERT_TRISTRIPS FALSE

Definition at line 66 of file gpc.c.

◆ LEFT

#define LEFT 0

Definition at line 57 of file gpc.c.

◆ MALLOC

#define MALLOC	(	p,
		b,
		s,
		t )

Value:

                            {if ((b) > 0) { \
                            p= (t*)malloc(b); if (!(p)) { \
                            fprintf(stderr, "gpc malloc failure: %s\n", s); \
                            exit(0);}} else p= NULL;}

Definition at line 104 of file gpc.c.

◆ N_EDGE

#define N_EDGE	(	d,
		e,
		p,
		i,
		j )

Value:

                            {(d)= (e); \
                            do {(d)= (d)->next;} while (!(d)->outp[(p)]); \
                            (i)= (d)->bot.x + (d)->dx * ((j)-(d)->bot.y);}

Definition at line 100 of file gpc.c.

◆ NEXT_INDEX

#define NEXT_INDEX	(		i,
			n )

Value:

((i + 1 ) % n)

Definition at line 78 of file gpc.c.

◆ NOT_FMAX

#define NOT_FMAX	(	v,
		i,
		n )

Value:

(v[NEXT_INDEX(i, n)].vertex.y > v[i].vertex.y)

Definition at line 86 of file gpc.c.

◆ NOT_RMAX

#define NOT_RMAX	(	v,
		i,
		n )

Value:

(v[PREV_INDEX(i, n)].vertex.y > v[i].vertex.y)

Definition at line 91 of file gpc.c.

◆ OPTIMAL

#define OPTIMAL	(	v,
		i,
		n )

Value:

((v[PREV_INDEX(i, n)].y != v[i].y) || \

(v[NEXT_INDEX(i, n)].y != v[i].y))

Definition at line 80 of file gpc.c.

◆ P_EDGE

#define P_EDGE	(	d,
		e,
		p,
		i,
		j )

Value:

                            {(d)= (e); \
                            do {(d)= (d)->prev;} while (!(d)->outp[(p)]); \
                            (i)= (d)->bot.x + (d)->dx * ((j)-(d)->bot.y);}

Definition at line 96 of file gpc.c.

◆ PREV_INDEX

#define PREV_INDEX	(		i,
			n )

Value:

((i - 1 + n) % n)

Definition at line 77 of file gpc.c.

◆ REV_MIN

#define REV_MIN	(	v,
		i,
		n )

Value:

((v[PREV_INDEX(i, n)].vertex.y > v[i].vertex.y) \

&& (v[NEXT_INDEX(i, n)].vertex.y >= v[i].vertex.y))

Definition at line 88 of file gpc.c.

◆ RIGHT

#define RIGHT 1

Definition at line 58 of file gpc.c.

◆ SUBJ

#define SUBJ 1

Definition at line 64 of file gpc.c.

◆ TRUE

#define TRUE 1

Definition at line 54 of file gpc.c.

◆ VERTEX

#define VERTEX	(	e,
		p,
		s,
		x,
		y )

Value:

{add_vertex(&((e)->outp[(p)]->v[(s)]), x, y); \

(e)->outp[(p)]->active++;}

Definition at line 93 of file gpc.c.

Typedef Documentation

◆ bbox

typedef struct bbox_shape bbox

◆ edge_node

typedef struct edge_shape edge_node

◆ it_node

typedef struct it_shape it_node

◆ lmt_node

typedef struct lmt_shape lmt_node

◆ polygon_node

typedef struct p_shape polygon_node

◆ sb_tree

typedef struct sbt_t_shape sb_tree

◆ st_node

typedef struct st_shape st_node

◆ vertex_node

typedef struct v_shape vertex_node

Enumeration Type Documentation

◆ bundle_state

enum bundle_state

Enumerator
UNBUNDLED
BUNDLE_HEAD
BUNDLE_TAIL

Definition at line 145 of file gpc.c.

◆ h_state

enum h_state

Enumerator
NH
BH
TH

Definition at line 138 of file gpc.c.

◆ vertex_type

enum vertex_type

Enumerator
NUL
EMX
ELI
TED
ERI
RED
IMM
IMN
EMN
EMM
LED
ILI
BED
IRI
IMX
FUL

Definition at line 118 of file gpc.c.

Function Documentation

◆ gpc_add_contour()

void gpc_add_contour	(	gpc_polygon *	p,
		gpc_vertex_list *	new_contour,
		int	hole )

Definition at line 1077 of file gpc.c.

◆ gpc_free_polygon()

void gpc_free_polygon ( gpc_polygon * p )

Definition at line 1018 of file gpc.c.

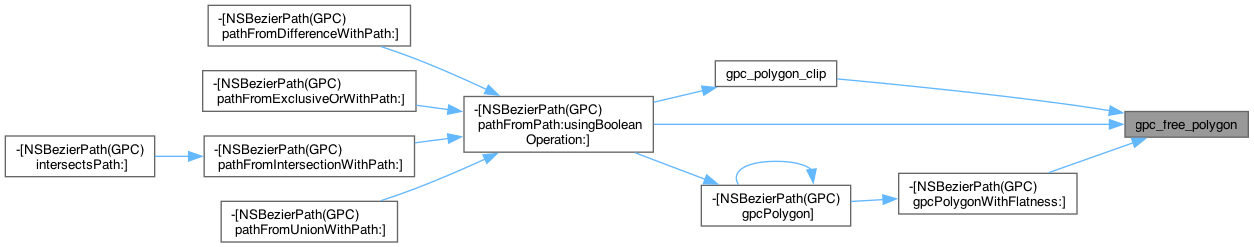

Here is the caller graph for this function:

◆ gpc_free_tristrip()

void gpc_free_tristrip ( gpc_tristrip * t )

Definition at line 1755 of file gpc.c.

◆ gpc_polygon_clip()

void gpc_polygon_clip	(	gpc_op	op,
		gpc_polygon *	subj,
		gpc_polygon *	clip,
		gpc_polygon *	result )

Definition at line 1117 of file gpc.c.

Here is the call graph for this function:

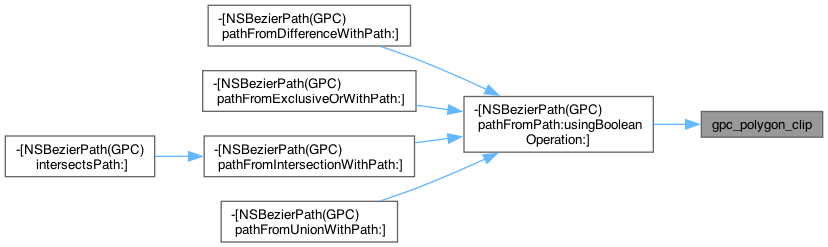

Here is the caller graph for this function:

◆ gpc_polygon_to_tristrip()

void gpc_polygon_to_tristrip	(	gpc_polygon *	s,
		gpc_tristrip *	t )

Definition at line 1766 of file gpc.c.

Here is the call graph for this function:

◆ gpc_read_polygon()

void gpc_read_polygon	(	FILE *	fp,
		int	read_hole_flags,
		gpc_polygon *	p )

Definition at line 1030 of file gpc.c.

◆ gpc_tristrip_clip()

void gpc_tristrip_clip	(	gpc_op	op,
		gpc_polygon *	subj,
		gpc_polygon *	clip,
		gpc_tristrip *	result )

Definition at line 1777 of file gpc.c.

Here is the caller graph for this function:

◆ gpc_write_polygon()

void gpc_write_polygon	(	FILE *	fp,
		int	write_hole_flags,
		gpc_polygon *	p )

Definition at line 1057 of file gpc.c.

Variable Documentation

◆ next_h_state

const h_state next_h_state[3][6]

Initial value:

=
{


   {BH, TH,   TH, BH,   NH, NH},
   {NH, NH,   NH, NH,   TH, TH},
   {NH, NH,   NH, NH,   BH, BH}
}

Definition at line 234 of file gpc.c.
